AOD 200 – mobile and flexible oil mist separator

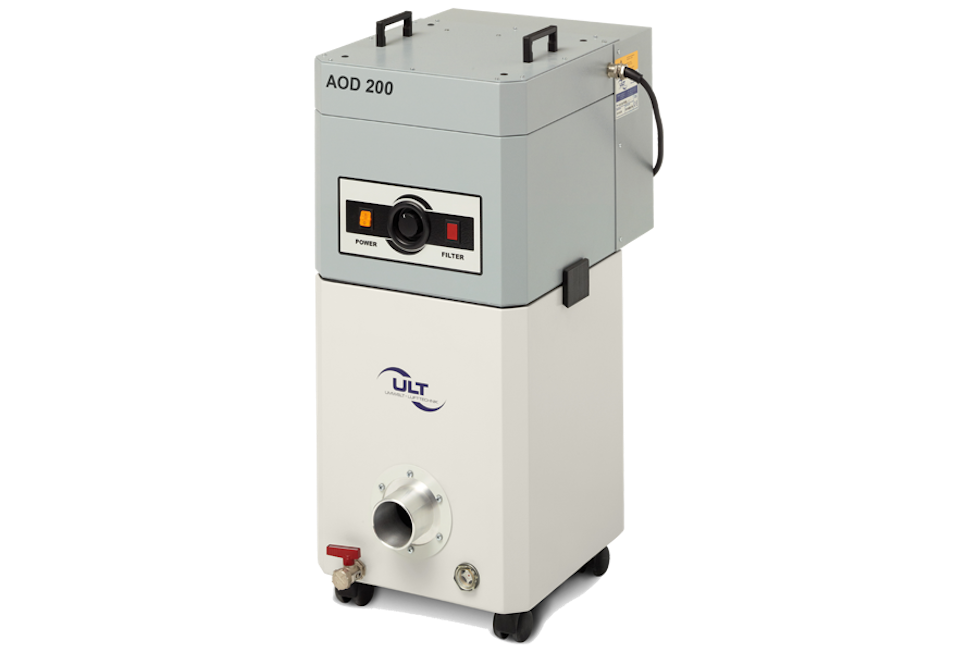

System in light and dark grey with drain tap at the front
  1. Home
  2. Products and services
  3. Industrial fume extraction
  4. AOD 200

AOD 200 – mobile and flexible oil mist separator

Product details

Application fields

  • Machining processes using coolants and lubricants

  • Milling, drilling, lathing, and more

Features

  • Mobile extraction system with castors

  • Simple filter handling

  • Modular design

  • Continuously welded oil sump

  • Control elements at the front side

  • Powded coated, robust steel housing

Options

  • Expanded metal filter, baffle plate separator, particle and adsorption filter

  • Volume flow control: stepless adjustment of suction capacity

  • Oil level indicator: easy monitoring of separated amount of oil

  • Oil drain valve: oil sump emptying during operation

Technical specifications

Device versionAOD 200 MD.14AOD 200 MD.40AOD 200 HD.10
Max. air flow in m³/h635420210
Max. vacuum in Pa3200110020700
Nominal capacity in m³/h@Pa250 @ 2000200 @ 900120 @ 13000
Dimensions in mm (WxDxH)390x570x900390x490x900390x490x820
Weight in kg404040
Noise level in dB505263
Connection variants – diameter in mm1 x 50 / options: 1 x 75 or 1 Ø 801 x 50 / options: 1 x 75 or 1 Ø 801 x 50 / options: 1 x 75 or 1 Ø 80

System benefits

  1. High flexibility

    Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.

  2. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

  3. Low-noise operation

    ULT's extraction and filtration systems are particularly quiet. This has already been appreciated by numerous customers worldwide. Your employees are thus effectively protected against noise pollution.

  4. Individual extraction solution

    Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.

  5. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

  6. Low energy consumption

    Our extraction systems reduce operating and maintenance costs due to their optimal filter concept. In addition, the system is designed in such a way that it keeps the required energy consumption extremely low.

Downloads

  1. Technical documentation AOD 200
Images
Extraction of cooling lubtricants such as oil and emulsion mists
Oil mist separator AOD 200
Extraction of cooling lubtricants such as oil and emulsion mists
Oil mist separator AOD 200
Extraction of cooling lubtricants such as oil and emulsion mists
Oil mist separator AOD 200
