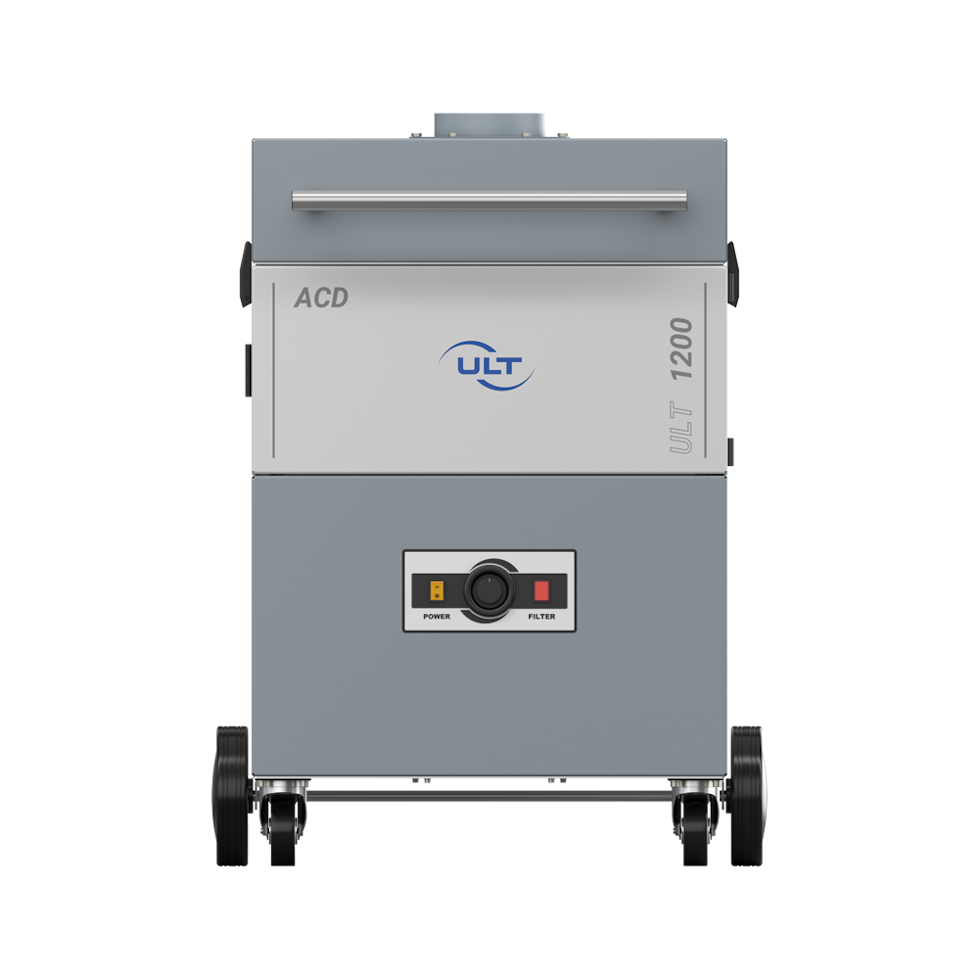

ACD 1200 – filtration system for odors, vapors, gases

Product details

Application fields

  • Bonding, laminating, varnishing

  • Pre-treat, cleaning

  • Moulding, printing, and more

Features

  • Mobile extraction system with castors

  • Exchangeable filter system with extraction and filtration modules

  • Control elements on the front panel

  • Powder-coated, rugged steel housing

  • Installation of extraction arms

Equipment

  • Volume flow control: stepless adjustment of suction capacity

  • Prefilter (optionally)

  • Loaded particle filter indicator: optical visualization

  • Interface SUB D9, operation hours counter, digital device control

Technical specification

Device versionACD 1200 A28 MD.18 ACD 1200 A28 MD.80 ACD 1200 A60 MD.18
Max. air flow in m³/h150014901500
Max. vacuum in Pa325018003250
Nominal capacity in m³/h@Pa1000 @ 1700800 @ 13001000 @ 1700
Dimensions in mm (WxDxH)790x820x1040790x820x1040790x820x1340
Weight in kg155155215
Noise level in dB556065
Connection variants – diameter in mm1 X 150 collar / 1 X 160 collar1 X 150 collar / 1 X 160 collar1 X 150 collar / 1 X 160 collar

ACD 1200 benefits

  1. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, You can choose between mobile or stationary solutions, system integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  2. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

  3. Modular construction

    Modularity is the basis for the effective use of ULT ventilation solutions. This allows You to react flexibly to changing pollutant or processing scenarios and always exploit the full potential of the systems.

  4. Individual system design

    If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.

  5. Long filter time

    The long performance life of the filter elements in our systems reduces maintenance and material costs in the medium and long term. In addition, the downtimes for necessary filter module changes or system cleaning are significantly reduced.

  6. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

Images

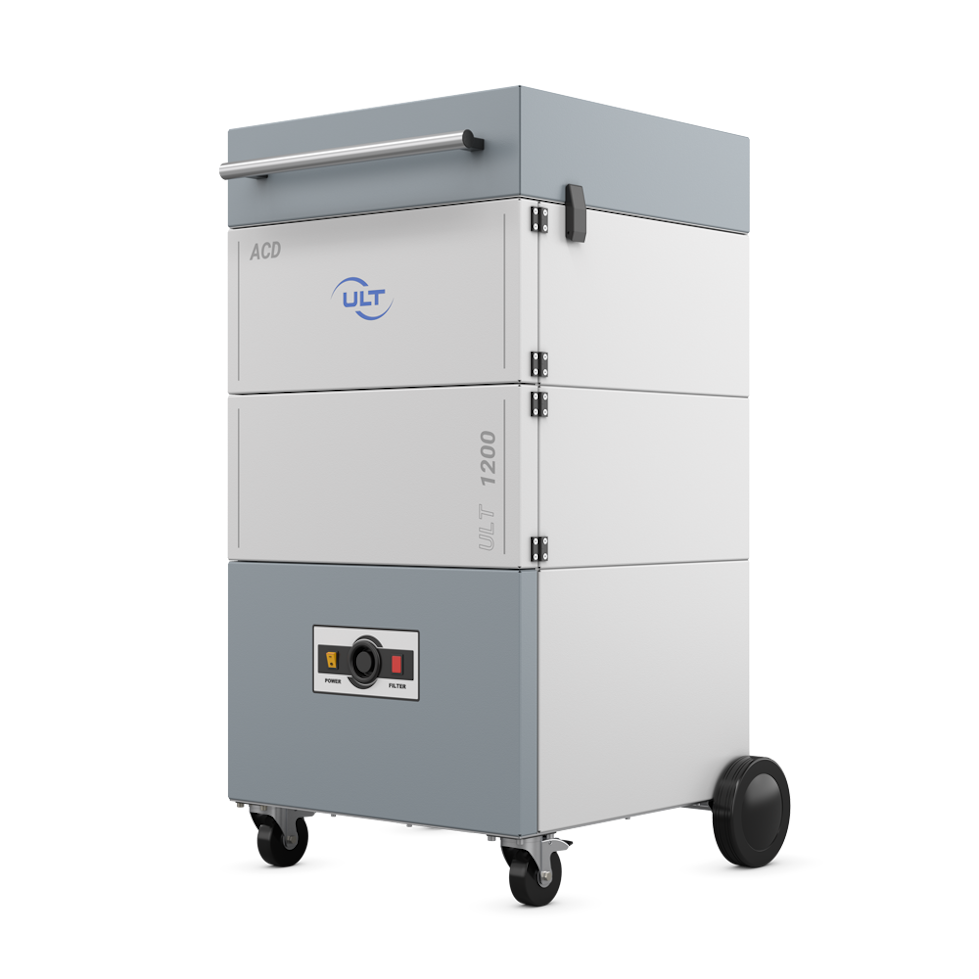

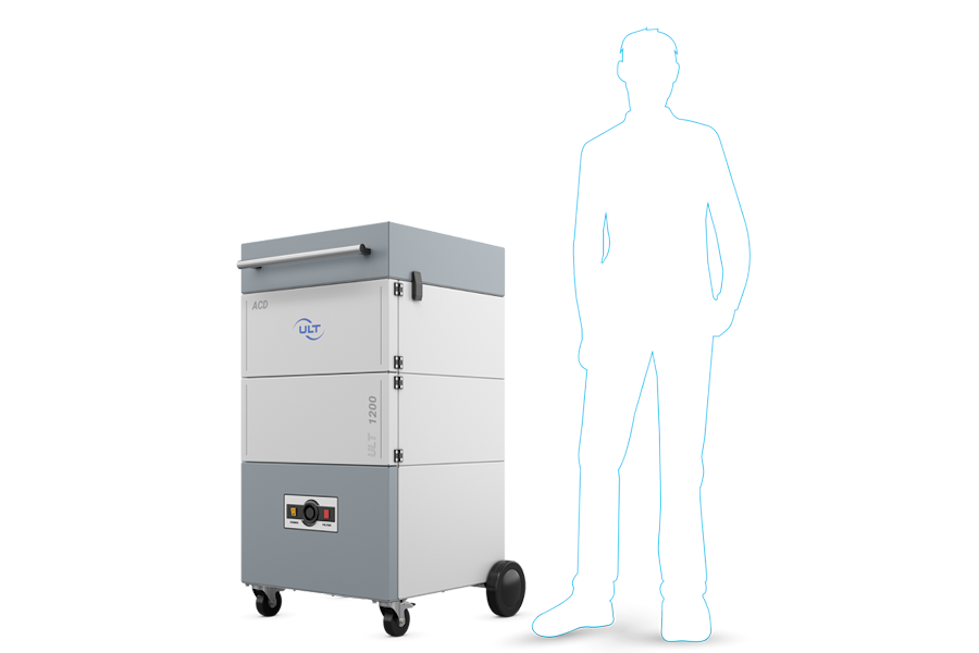

Mobile extractor for odors, vapors, gases with 60 kg activated carbon
ACD 1200 A60

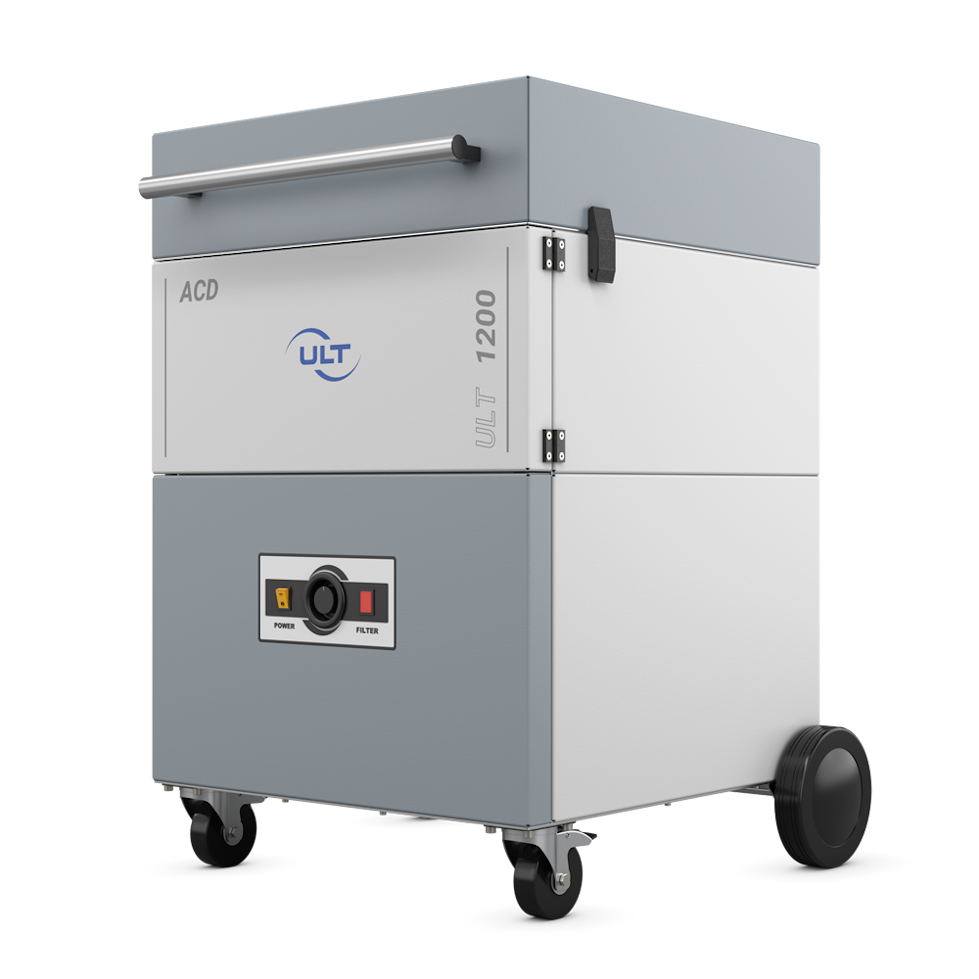

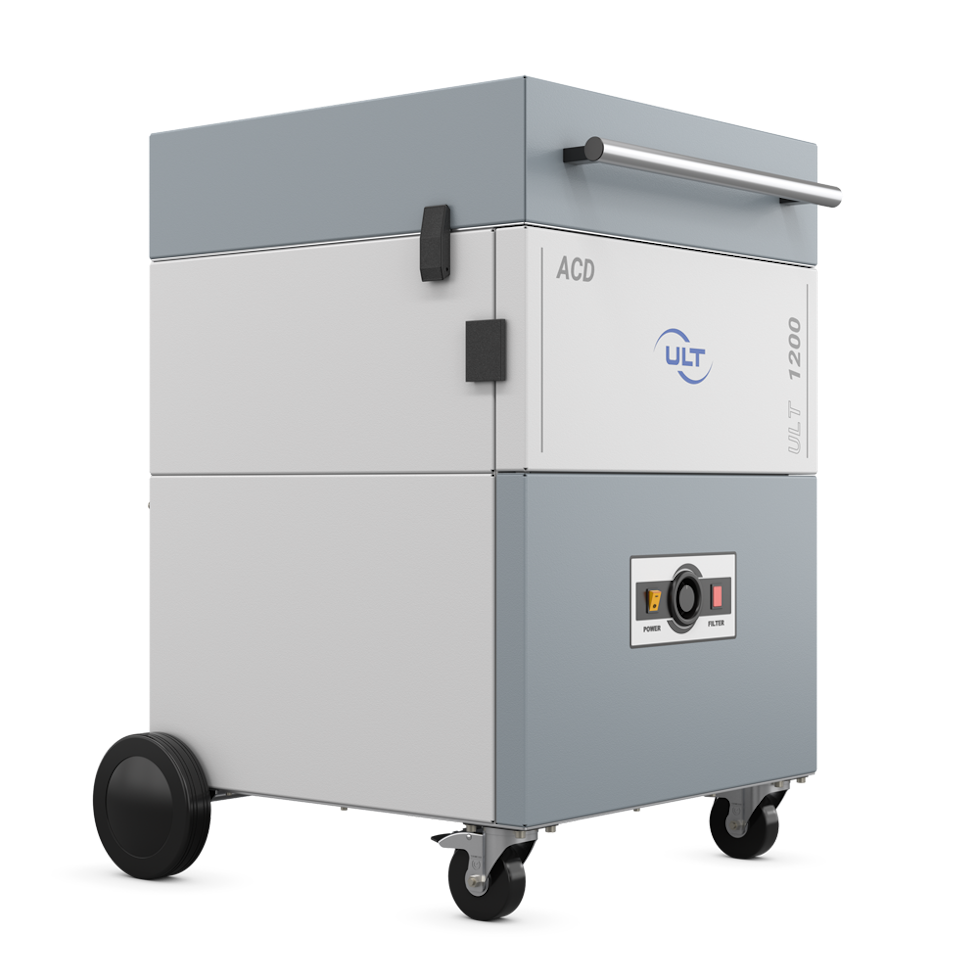

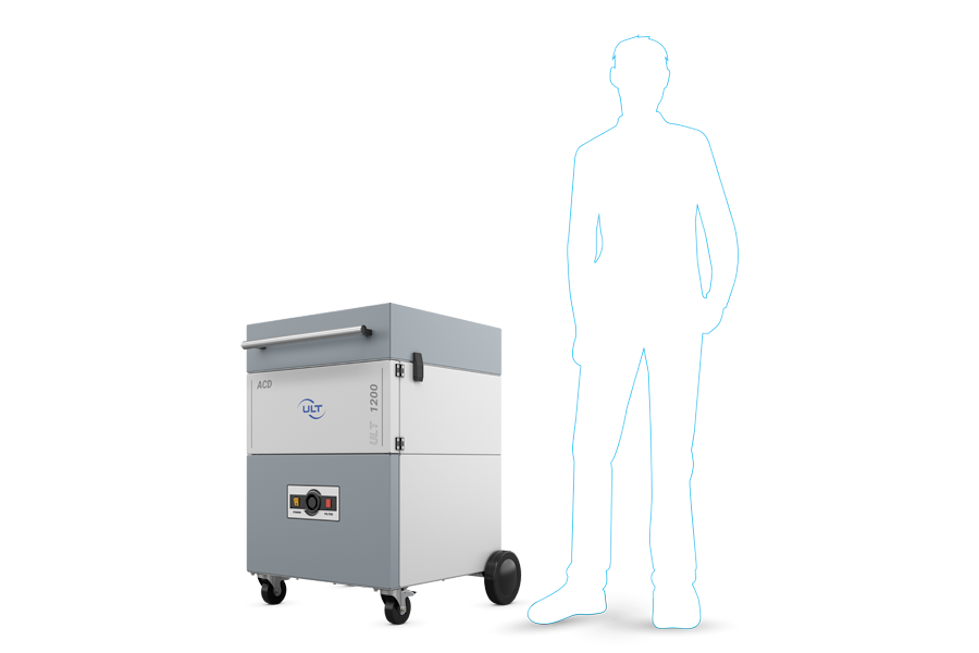

Extraction system with 28 kg activated carbon as a sorption filter
Filtration system ACD 1200 A28
Mobile extractor for odors, vapors, gases with 60 kg activated carbon
ACD 1200 A60
Extraction system with 28 kg activated carbon as a sorption filter
Filtration system ACD 1200 A28
Mobile extractor for odors, vapors, gases with 60 kg activated carbon
ACD 1200 A60
Extraction system with 28 kg activated carbon as a sorption filter
Filtration system ACD 1200 A28
