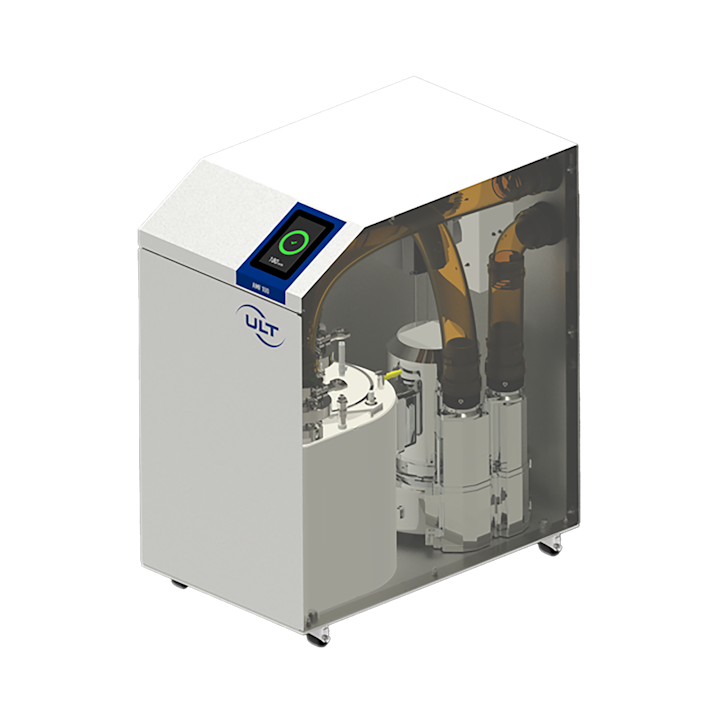

AMF 100 – compact gas purifier for 3D printing processes under inert gas

Extraction system for process gas purification with barrel technology

Product Details

Features

Compact, gas-tight and powerful system for process gas purification
Can be utilized as integration or stand-alone solution
Mobile and flexible usage
Contamination-free storage of highly flammable and harmful process pollutants
Passivable storage filters
Front-side, contamination-free replacement of used filter cells
Operation as a slave with I/O system and fieldbus modules, or as a stand-alone system with integrated CULT control* (*specially developed, unique control for our gas cleaning systems)
Monitoring and graphical display of filter occupancy
Volume flow rate constant maintenance

Equipment

Metal housing on wheels
Side channel blower with frequency converter
Pre-filter BIA M with a separation efficiency of at least 99.9% for particle sizes ≥ 1 µm
HEPA-H-14 filter unit with a separation efficiency of at least 99.95% for particle sizes ≥ 0.1 µm
Shut-off device of the pre-filter
Integrated control with 5'' touchscreen
Time control and data log function
Use of sensors (differential pressure, volume flow, level)

Technical specifications

Device version	AMF 100
Max. air flow in m³/h	130
Max. vacuum in Pa	15000
Nominal capacity in m³/h @ Pa	100 @ 10.000
Dimensions in mm (WxDxH)	400 x 700 x 760
Weight in kg	77
Connection variants – diameter in mm	G2“, DN 50

Benefits of the AMF 100

Low-noise operation
ULT's extraction and filtration systems are particularly quiet. This has already been appreciated by numerous customers worldwide. Your employees are thus effectively protected against noise pollution.
High flexibility
Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.
Simple operation
Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.
Low energy consumption
Our extraction systems reduce operating and maintenance costs due to their optimal filter concept. In addition, the system is designed in such a way that it keeps the required energy consumption extremely low.
Ideal filtration technology
The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.
Individual system design
If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.
Contamination-free filter handling
The filter system technology has been designed in such a way that production system operators have no contact with particles, powders or condensates when changing filters.
