JUMBO Filtertrolley LRA – mobile soldering fume extractor

Mobile extraction unit with castors and extraction arm

Product details

Application fields

  • Soldering operations at manual workplaces

  • Soldering fume extraction for changing work conditions

Features

  • Mobile extraction device for variable and changing operating conditions and locations

  • High suction power, steplessly adjustable

  • Extremely quiet operation

  • Easy filter handling, access via suction plate

  • Material ABS (impact tough, chemical resistant, corrosion resistant)

  • Installation of extraction arms (Ø 50, 63, 75) and application-specific capturing elements

Technical specifications

Device versionJUMBO Filtertrolley 2.0 LRA
Max. air flow in m³/h190
Max. vacuum in Pa3200
Nominal capacity in m³/h@Pa80 @ 1900
Dimensions in mm (WxDxH)450x340x530
Weight in kg36
Noise level in dB49
Connection variants – diameter in mm1 X 50 / option: 1 X 75

System benefits

  1. Low-noise operation

    ULT's extraction and filtration systems are particularly quiet. This has already been appreciated by numerous customers worldwide. Your employees are thus effectively protected against noise pollution.

  2. High flexibility

    Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.

  3. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

  4. Low energy consumption

    Our extraction systems reduce operating and maintenance costs due to their optimal filter concept. In addition, the system is designed in such a way that it keeps the required energy consumption extremely low.

  5. Based on R&D

    Research and development (R&D) has highest importance at ULT. Many projects with well-known partners and institutes have been resulted in new approaches for ventilation systems, which are often transferred to series products or quickly and easily adapted to customer-specific projects.

  6. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

Downloads

  1. Technical documentation JUMBO Filtertrolley
  2. Accessories JUMBO Filtertrolley
  3. Brochure "Mobile fume extractor JUMBO Filtertrolley"
Images

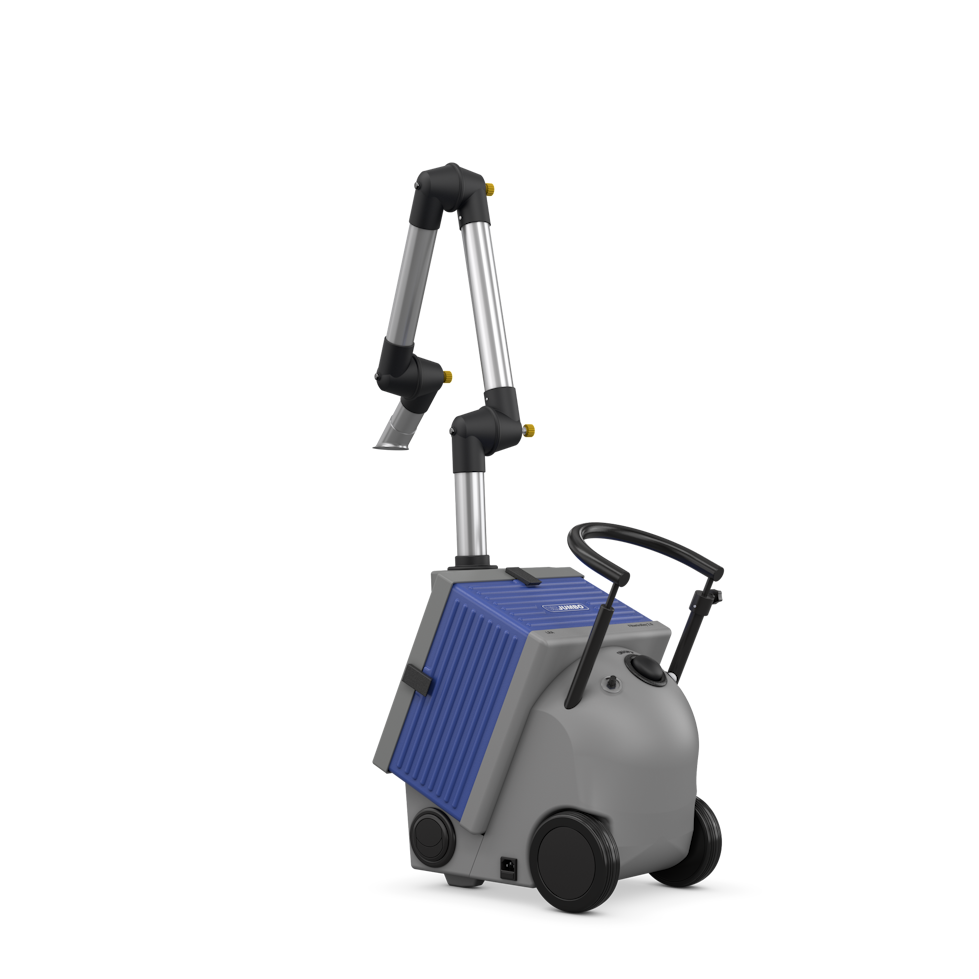

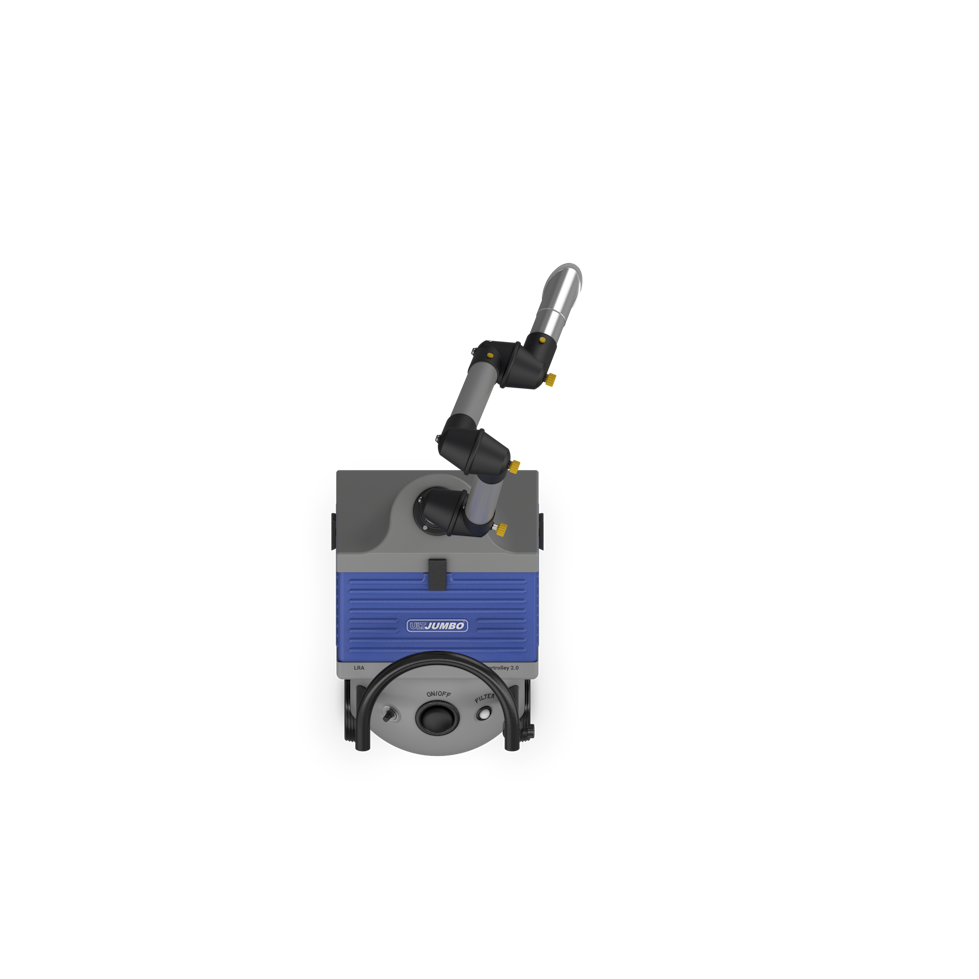

JUMBO LRA for soldering vapors and fumes
Portable fume extraction – ideal for changing workplaces
Dimensions of the mobile solder fume extractor

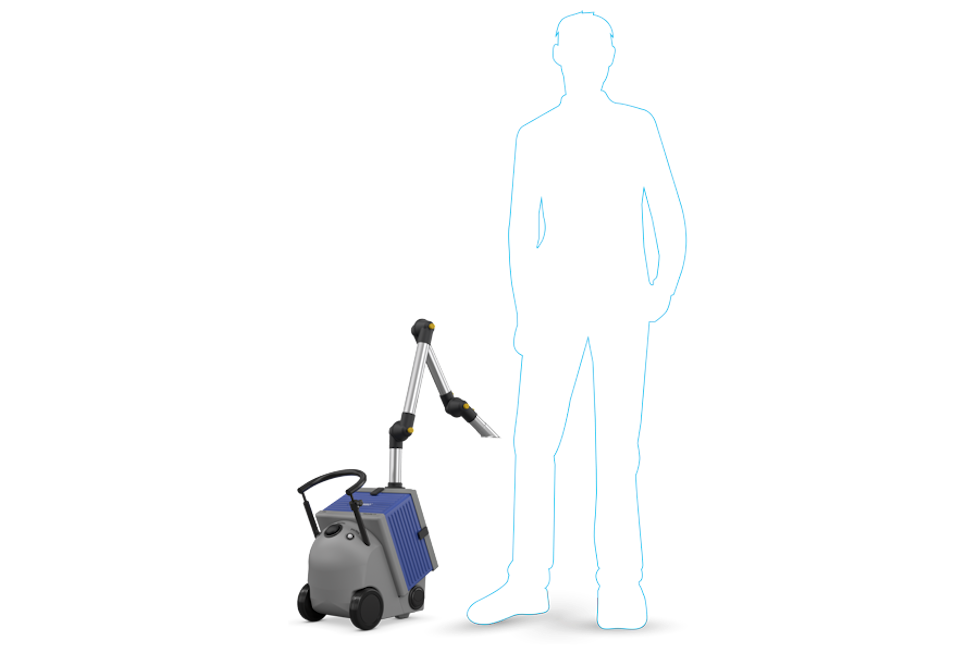

Human-system size ratio

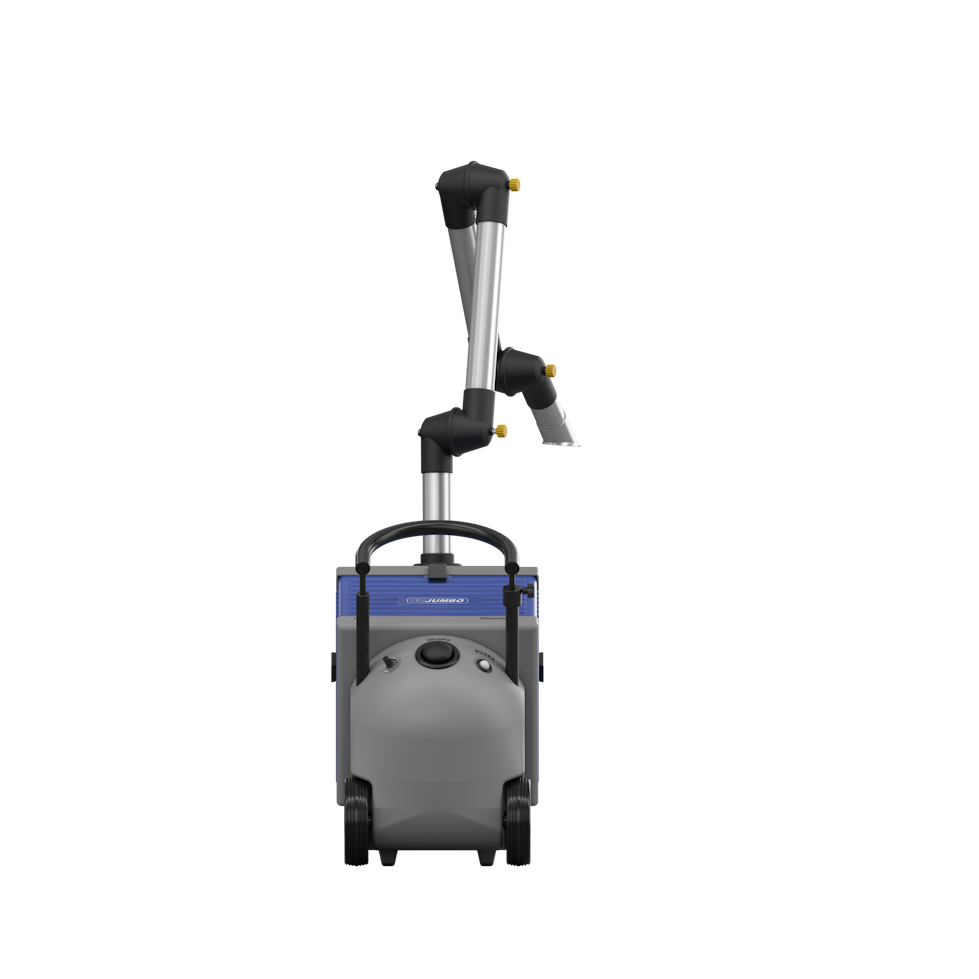

Mobile extraction system for solder fume and vapors

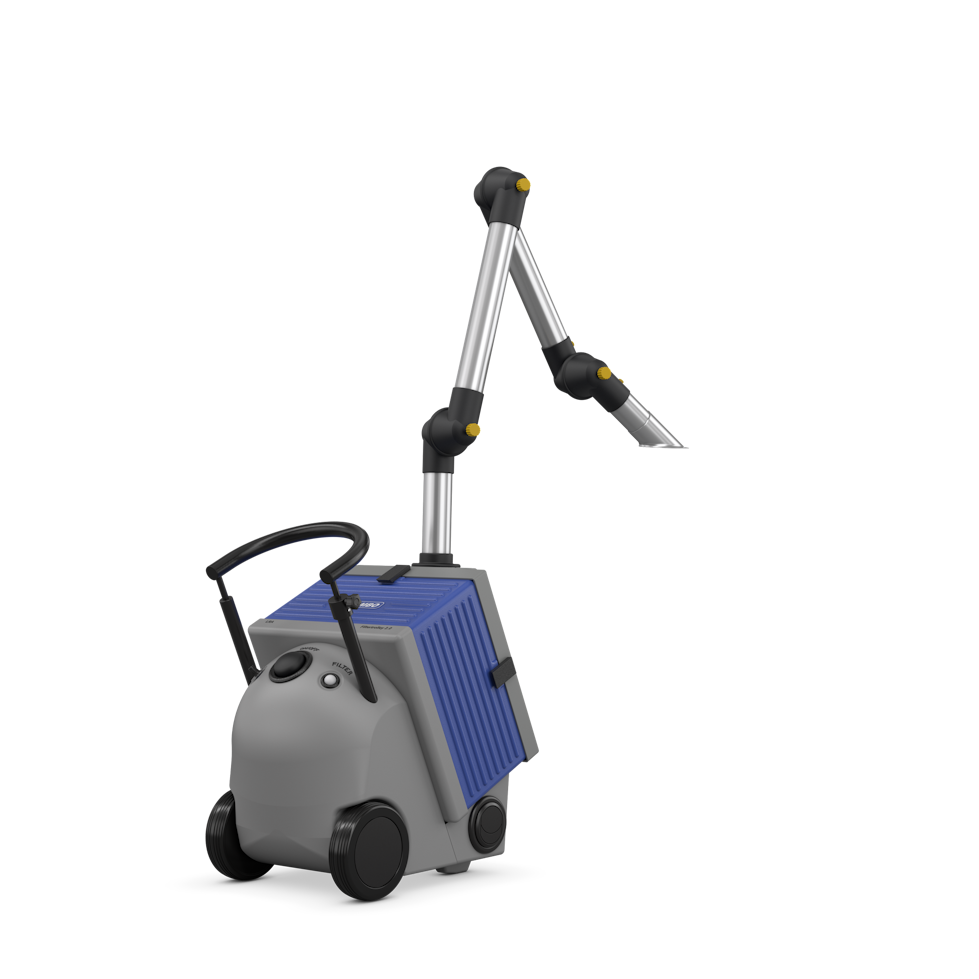

JUMBO Filtertrolley LRA for soldering fume extraction
Flexible soldering fume extraction with the JUMBO LRA
Mobile extraction of soldering fume and vapors
Mobile soldering fume extraction with the JUMBO LRA
Easy to use and extremely quiet operation
Mobile and flexible air purification in electronics production

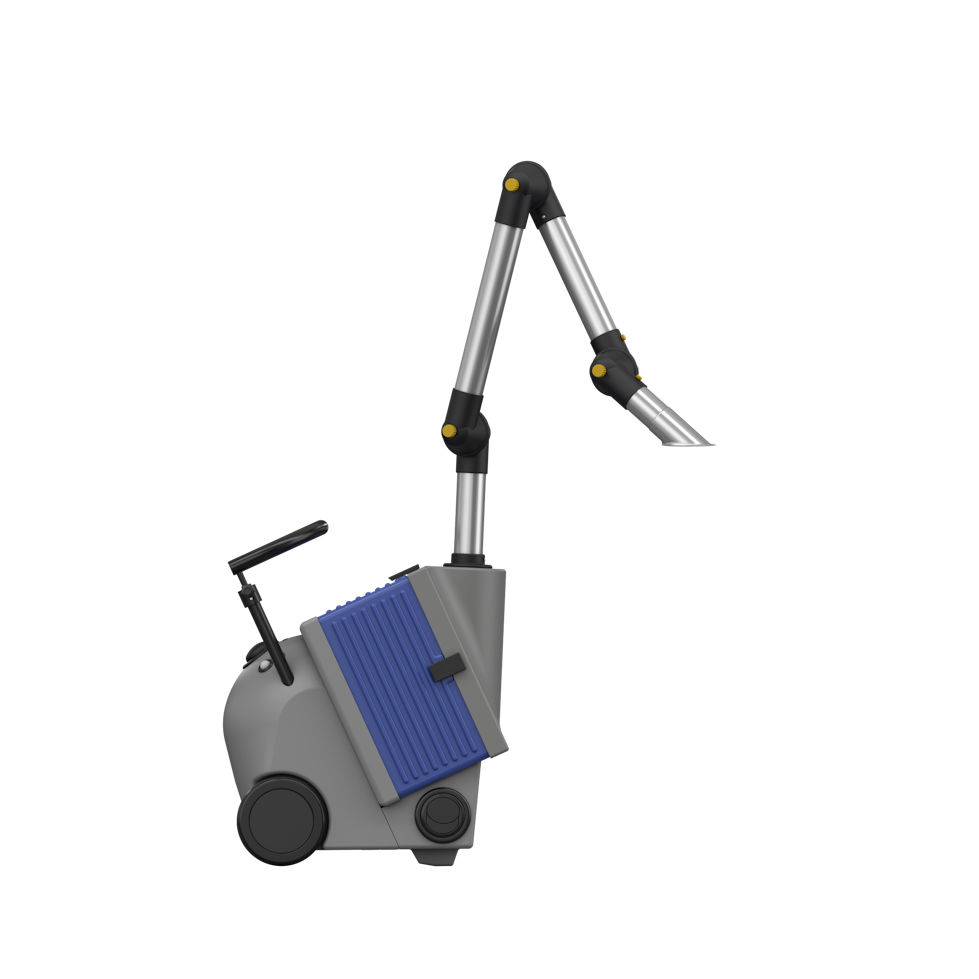

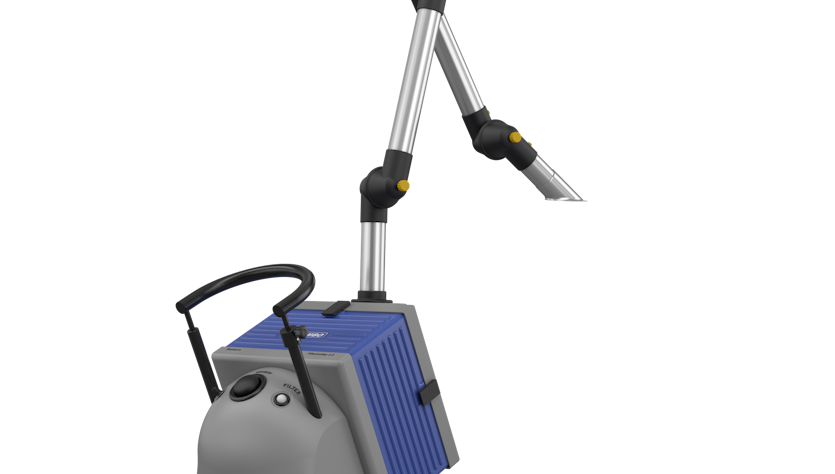

Extraction arm mounted on the device
JUMBO LRA for soldering vapors and fumes
Portable fume extraction – ideal for changing workplaces
Dimensions of the mobile solder fume extractor
Human-system size ratio
Mobile extraction system for solder fume and vapors
JUMBO Filtertrolley LRA for soldering fume extraction
Flexible soldering fume extraction with the JUMBO LRA
Mobile extraction of soldering fume and vapors
Global presence

Your contact to our partners

We will gladly put you in touch with our local partners. You are welcome to contact us - your inquiry will immediately be forwarded.

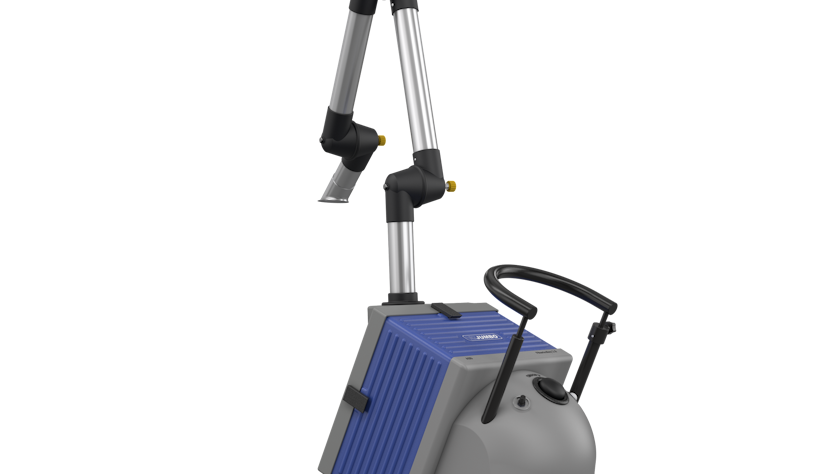

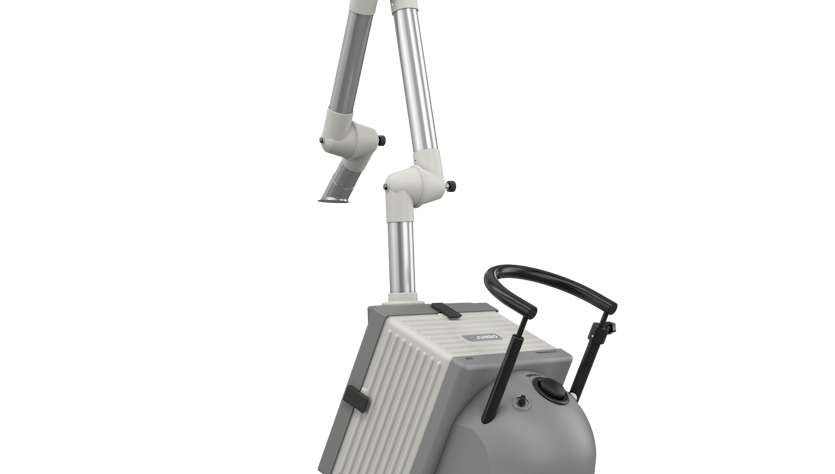

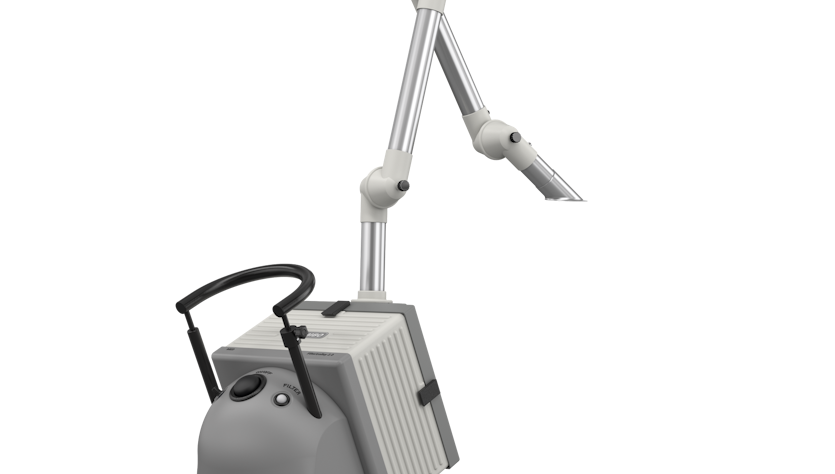

Other special system variants
