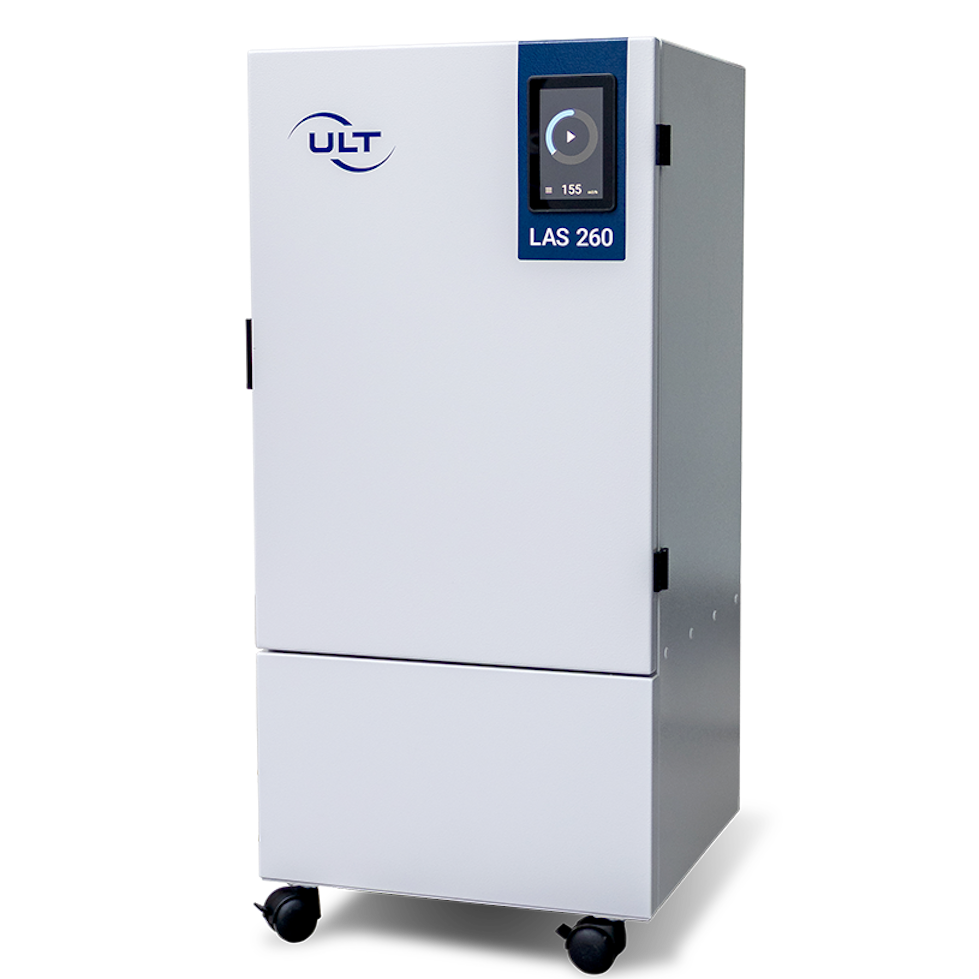

LAS 260.1 – the all-rounder for safe and clean laser processes
LAS 260.1 – the all-rounder for safe and clean laser processes
Clean working environment and efficient production
The LAS 260.1 extraction system is a flexible solution that can be used for many laser processing processes on a wide variety of materials. Whether metal, plastic or wood, the LAS 260.1 ensures reliable extraction and filtration of particles and gases from your process.
So you can be sure that your work environment and facilities will always remain clean and safe and that your production will be efficient and stable.
Application fields
Laser engraving, laser marking, laser welding, laser structuring, laser cutting, etc.
Processing of plastics, metals or organic materials
Features
Mobile extraction system with device rollers
Replaceable filter system with extremely low-noise operation
Simple filter handling
Operating elements and filter access on the front
Powder-coated, robust housing
Optimum filter concept and low replacement filter costs for significant cost savings
Stepless adjustment of the suction power
Particle filter occupancy: visual signaling
M12 interface
What makes the LAS 260.1 special?
Silent Technology
Save Change Technology
Enpowered efficiency and reliability
Easy operation
Compliant to your laser system
Energie Saving Technology
Silent Technology
Save Change Technology
Enpowered efficiency and reliability
Easy operation
Technical specifications
| Device version | LAS 260.1 |
|---|---|
| Max. air flow in m³/h | 360 |
| Max. vacuum in Pa | 9500 |
| Nominal capacity in m³/h@Pa | 200 @ 5000 |
| Dimensions in mm (WxDxH) | 440x508x958 |
| Weight in kg | 56 |
| Noise level in dB | 47 |
| Connection variants – diameter in mm | 1 X Ø 80 |
Advice on our extraction and filtration technology
The filter system
The highly availabe laser-specific storage filter system ensures safety for lasers, products and people. Filter replacement is easy and contamination-free. The intelligent, multi-stage storage filter system enables long filter lives and, consequently, a stable production.
Particulate pre-filter stage with generous filter surface
Our pre-filter cassette is an efficient particle filter that allows effective removal of all dust particles. The large class F9 filter surface contributes to improved filter performance and, hence, a longer lifespan.
The strong combination of HEPA and activated carbon
The combination filter cartridge combines a high-quality class H14 fine particle filter that retains even the smallest nanoparticles; and a generously dimensioned activated carbon bed that efficiently adsorbs gaseous pollutants such as odors or vapors to ensure outstanding air purity.
Higher separation efficiency, long service life, and constant pollutant collection
Our filter system scores with numerous advantages:
The high separation efficiency ensures clean air, while the high-quality filter components ensure long-term reliability. The low pressure loss optimizes energy efficiency and reduces operating costs.
Optional accessories for your “needs”
Spark traps for preventive fire protection
Hose adapter sets for individual connection
Extraction arms for efficient pollutant collection
M12 adapter for individual interface configuration
Post filter for clean room installation and noise reduction
