ASD 160 – mobile dust collector

Product details

Application fields

  • Mobile dust collection

  • Grinding, engraving, polishing, cleaning, abrading, transfilling, etc.

  • Flexible extraction for changing workplaces and small to medium-sized dust discharges

Features

  • Stationary and mobile unit with either four castors or adjustable feet

  • Replacement filter system – individual filter exchange

  • Extremely quiet operation

  • Simple filter handling, accessible from the top

  • Rugged steel housing

  • One or two connectors for extraction arms

  • Stepless volume flow control

  • Loaded particle filter indicator: optical visualization

Option

  • Interface SUB D9: remote ON/OFF, operation status, filter saturation 100%

System benefits

  1. Low energy consumption

    Our extraction systems reduce operating and maintenance costs due to their optimal filter concept. In addition, the system is designed in such a way that it keeps the required energy consumption extremely low.

  2. Simple operation

    Our extraction and filtration systems have been designed in such a way that they can be put into operation trouble-free and are easy to operate. They are easy to operate, handle and maintain.

  3. Low-noise operation

    ULT's extraction and filtration systems are particularly quiet. This has already been appreciated by numerous customers worldwide. Your employees are thus effectively protected against noise pollution.

  4. High flexibility

    Many of the ULT fume extraction systems can be utilized flexibly. For example, You can choose between mobile or stationary solutions, system integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.

  5. Individual system design

    If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.

  6. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

Technical specifications
Device versionASD 160.1 MD.11
Max. air flow in m³/h190
Max. vacuum in Pa3200
Nominal capacity in m³/h@Pa80 @ 1900
Dimensions in mm (WxDxH)405x355x545
Weight in kg36
Noise level in dB49
Connection variants – diameter in mmStandard: 2 X 50 / Option: 1 X console with Alsident S50 flange
Images

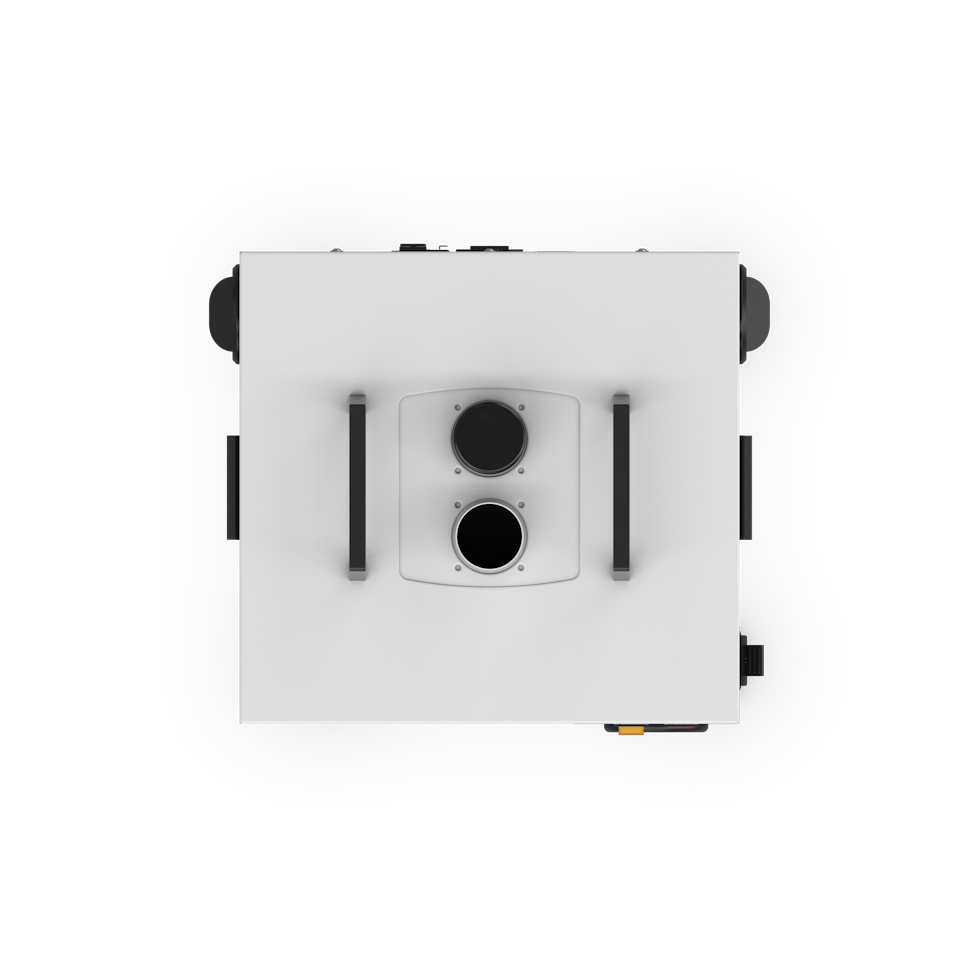

Dust collection system ASD 160.1
ASD 160.1 top view

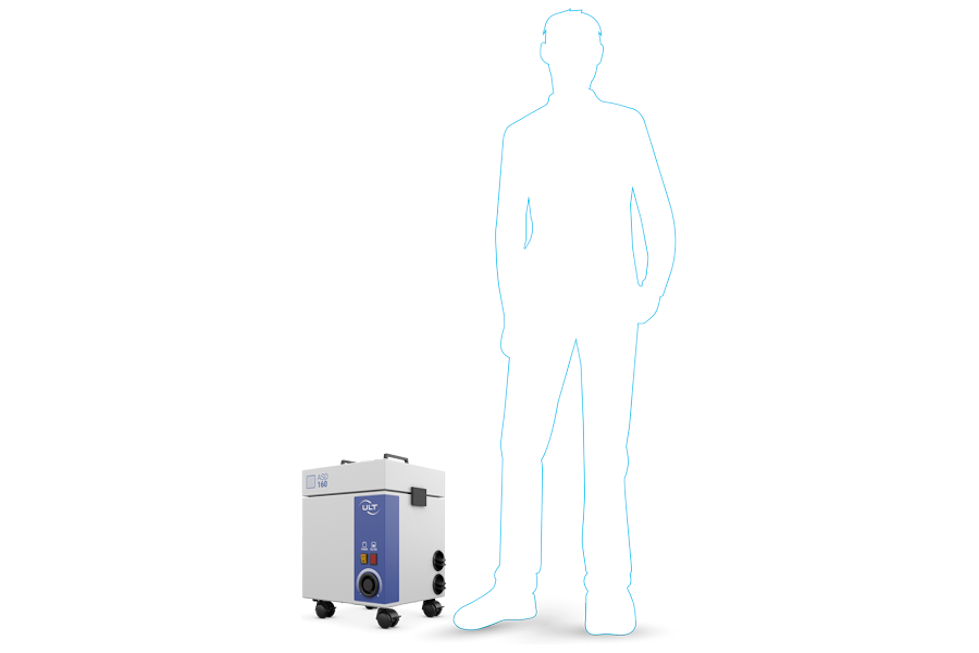

Mobile dust collector compared to human size
Size ration human-device

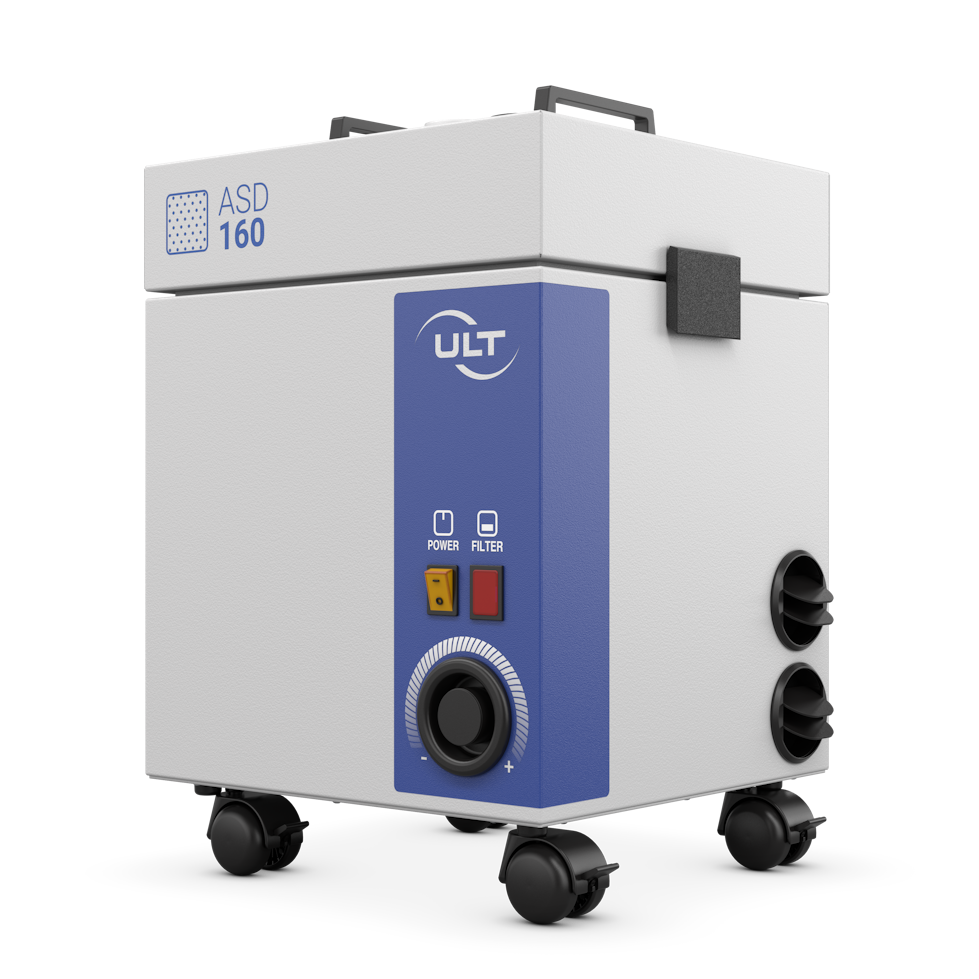

Mobile dust collector ASD 160.1
Mobile dust collector ASD 160.1

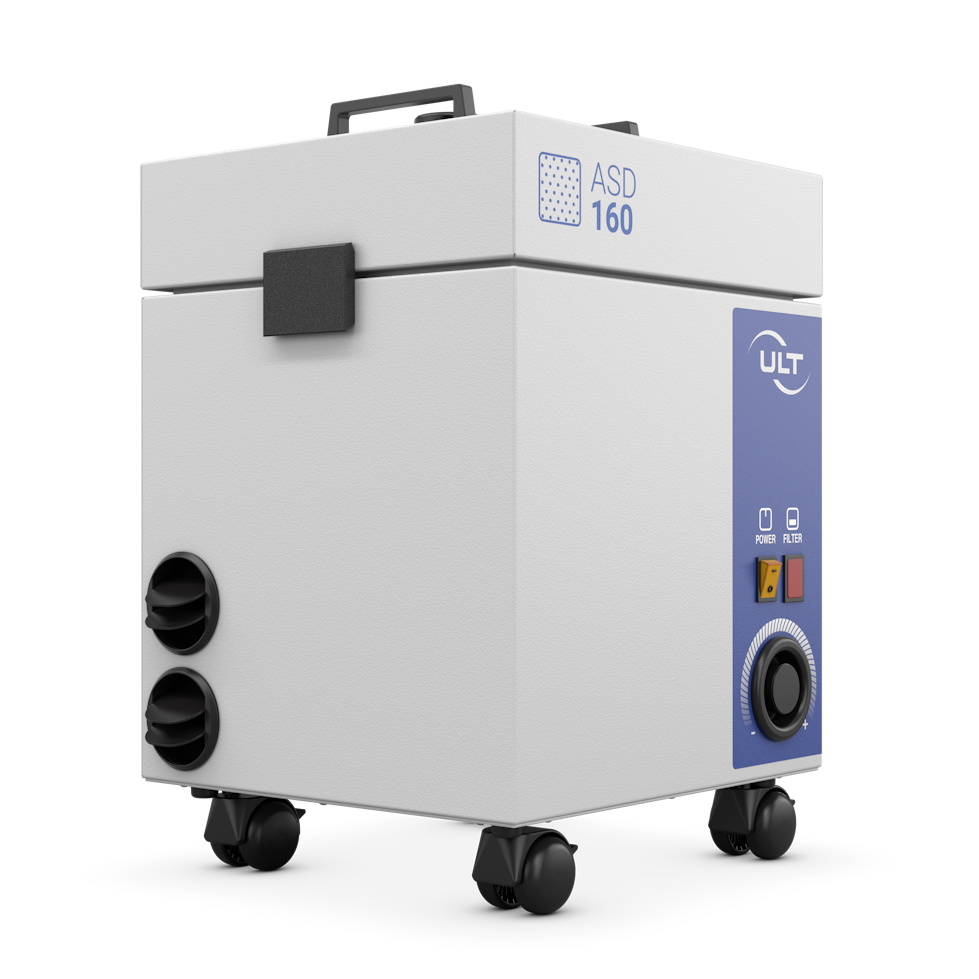

Mobile dust and smoke extraction
ASD 160.1 for dust collection

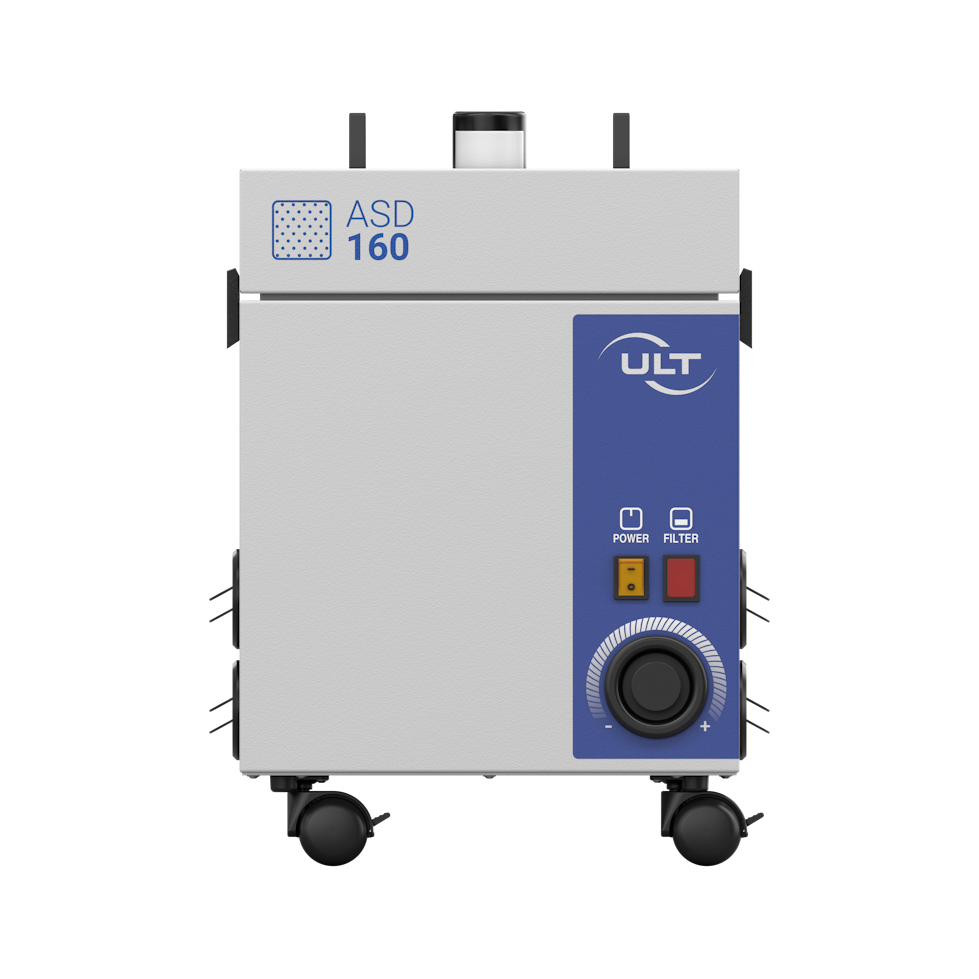

Dust collection unit
ASD 160.1 front view

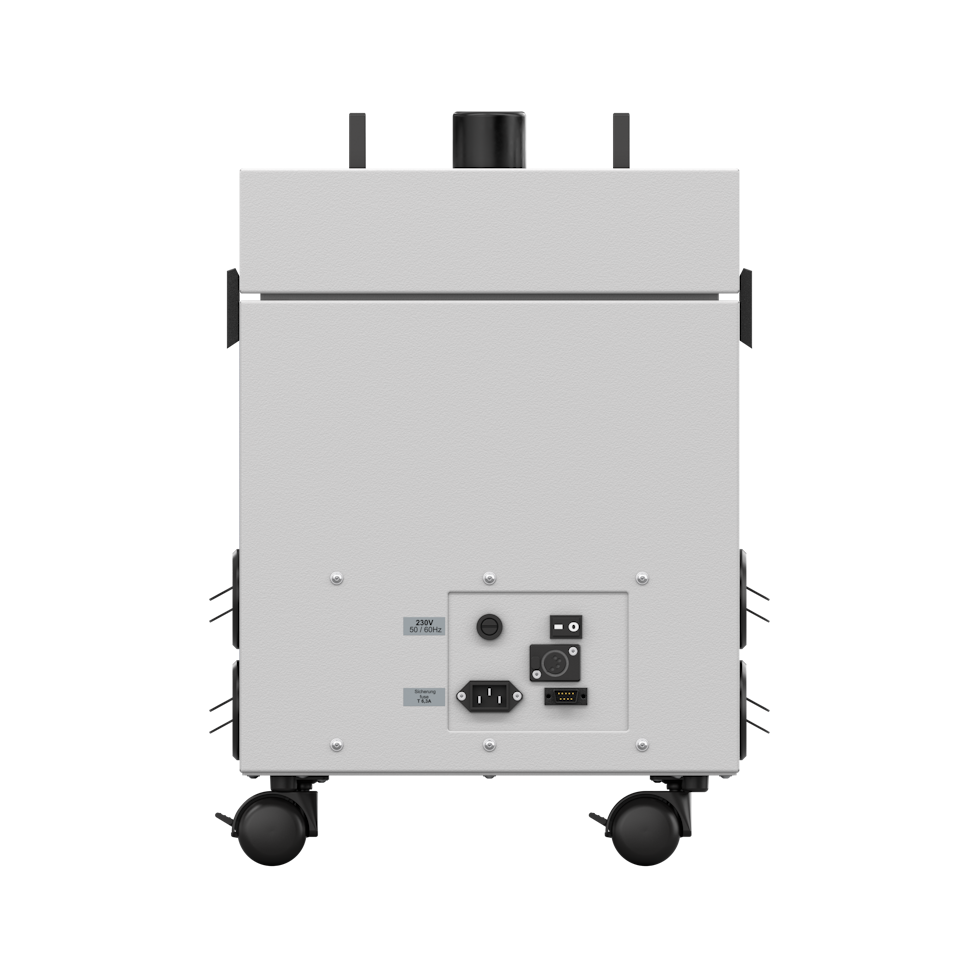

Mobile dust collection with ASD 160.1
ASD 160.1 back view

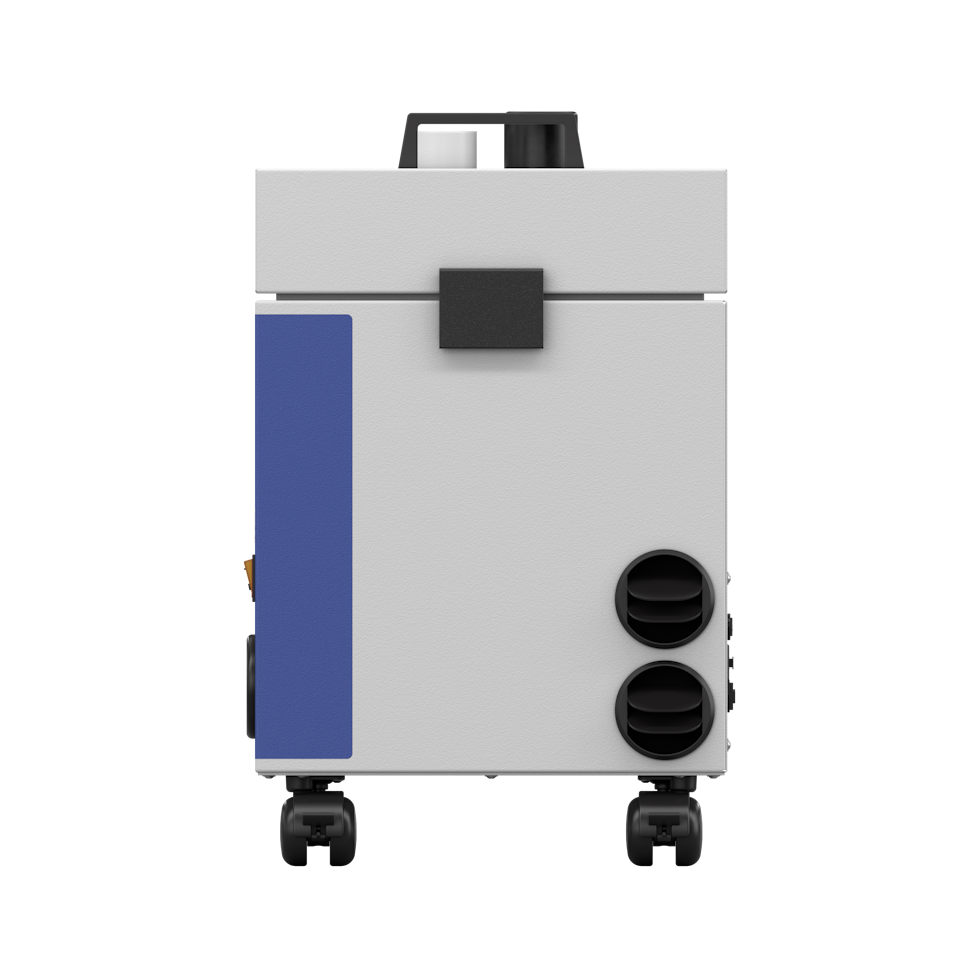

Mobile dust extraction and air purification
ASD 160.1 left view

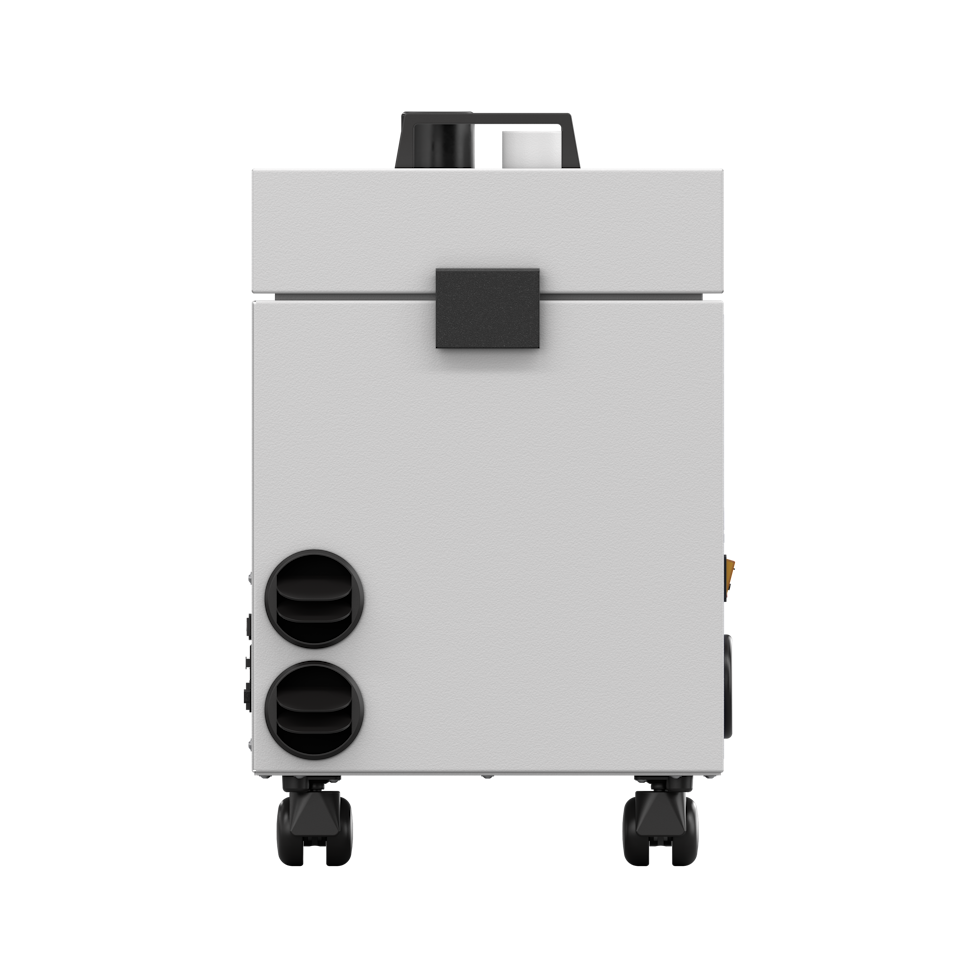

Mobile extraction of dust and smoke
ASD 160.1 right view
Dust collection system ASD 160.1
ASD 160.1 top view
Mobile dust collector compared to human size
Size ration human-device
Mobile dust collector ASD 160.1
Mobile dust collector ASD 160.1
Mobile dust and smoke extraction
ASD 160.1 for dust collection
