ASD 2500 – dust collection system

Product details

Application fields

  • Grinding, engraving, polishing

  • Cleaning, abrading, transfilling etc.

  • Can be combined to large-scale plants

Features

  • Stationary extraction system for very high pollutant output

  • 70 l dust collector

  • Cartridge filter system with self-cleaning filter elements

  • Simple filter handling by means of quick lock fasteners

  • Powder coated, rugged steel housing

Equipment

  • Control elements in separate switch cabinet

  • Loaded particle filter indicator

  • Automatic pulse-jet filter cleaning

  • Swing check valve (Option)

System benefits

  1. Long filter time

    The long performance life of the filter elements in our systems reduces maintenance and material costs in the medium and long term. In addition, the downtimes for necessary filter module changes or system cleaning are significantly reduced.

  2. Individual system design

    If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.

  3. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

Technical specifications
Device versionASD 2500 MD.63
Max. air flow in m³/h3250
Max. vacuum in Pa5000
Nominal capacity in m³/h@Pa3000 @ 2750
Dimensions in mm (WxDxH)900x1000x3120
Weight in kg600
Connection variants – diameter in mm1 x 250
Images

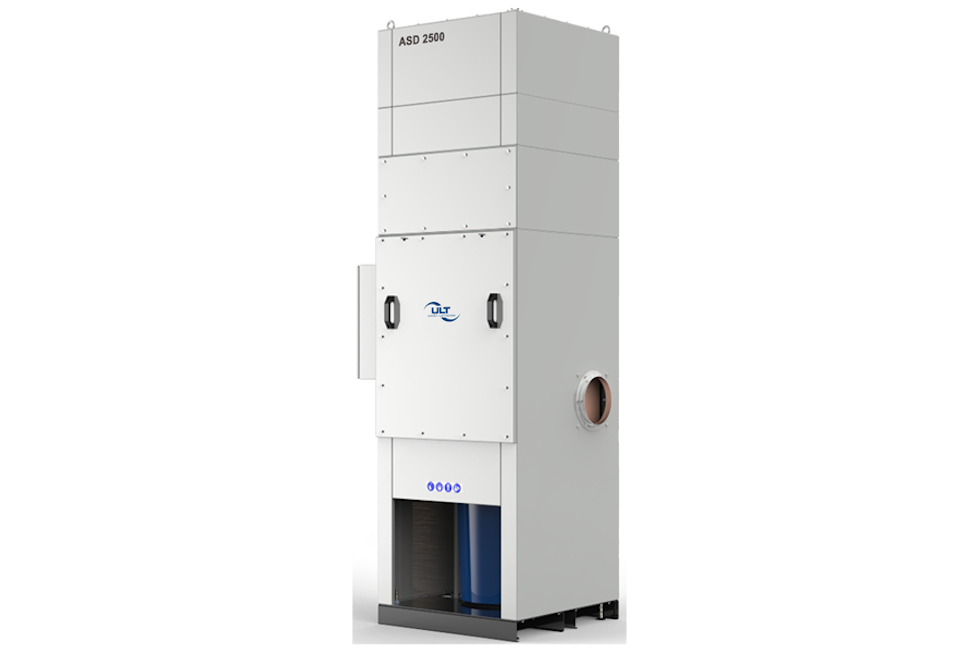

Extraction system for dust and smoke
Dust collector ASD 2500
