ASD 300.81 – dust collector with explosion protection

Relatively tall, narrow device with control panel in the upper area

Product details

Application fields

  • Removal of combustible dusts of explosion category St.1

  • Grinding, engraving, polishing

  • Cleaning, abrading, transfilling, etc.

Features

  • Stationary extraction and filtration system

  • Exchangeable filter system with cartridge and storage filter elements

  • H certified according to DIN EN 60335-2-69 appendix AA

  • Ex certified according to ATEX RL 94/9/EG, Ex II 1/3/- D c T4

  • Volume flow control: stepless adjustment of suction capacity

  • Loaded particle filter indicator: optical signalling

  • Powder coated, robust steel housing

  • Interface SUB D9: standard configuration, remote ON/OFF, operation status, filter saturation 100%

  • Differential pressure dependent pulse-jet cleaning

Technical specifications

Device versionASD 300.81 HFM054 H-Ex
Max. air flow in m³/h400
Max. vacuum in Pa20200
Nominal capacity in m³/h@Pa270 @ 5000
Dimensions in mm (WxDxH)390x590x1810
Weight in kg105
Noise level in dB60
Connection variants – diameter in mm1 x 75 / additional optionally

System benefits

  1. High flexibility

    Our extraction and filtration systems can be used flexibly. This lets you choose, for instance, between mobile and/or stationary solutions, integrated systems, or specialized ventilation solutions. If necessary, the optimal application can be configured by ULT experts on-site.

  2. Modular construction

    Modularity is the basis for the effective use of ULT ventilation solutions. This allows You to react flexibly to changing pollutant or processing scenarios and always exploit the full potential of the systems.

  3. Long filter time

    The long performance life of the filter elements in our systems reduces maintenance and material costs in the medium and long term. In addition, the downtimes for necessary filter module changes or system cleaning are significantly reduced.

  4. Based on R&D

    Research and development (R&D) has highest importance at ULT. Many projects with well-known partners and institutes have been resulted in new approaches for ventilation systems, which are often transferred to series products or quickly and easily adapted to customer-specific projects.

  5. Individual system design

    If necessary, our extraction systems can be structurally adapted to your individual pollutant and workplace situation. This applies to the selection of the ideal filtration technology, questions of fire and explosion protection, the selection of system materials and special solutions for capturing air pollutants.

  6. Ideal filtration technology

    The utilization of the most sensible filtration technology ensures a long filter service life and, consequently, reduces maintenance and spare parts costs. ULT always offers You the ideal solution for your specific pollutant technology in order to achieve the best possible filtration results.

Downloads
  1. Technical documentation ASD 300.81 HFM 054 H-Ex
  2. Accessories ULT 300

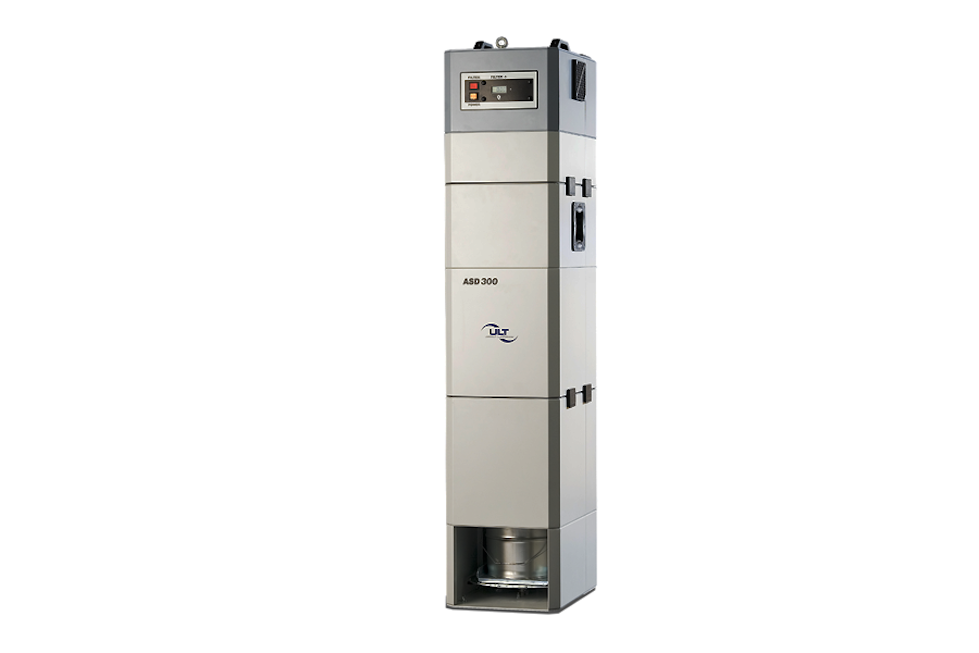

Grey system with controls on the device front
Dust collector ASD 300.81 HFM054 H-Ex
Grey system with controls on the device front
Dust collector ASD 300.81 HFM054 H-Ex
Grey system with controls on the device front
Dust collector ASD 300.81 HFM054 H-Ex
