Table stand and air filtration system for Roland DG UV Printer series

Our solution - ULT high quality air filtration

The RDG MO was developed exclusively and perfectly for the Roland DG UV printer. In addition to its exceptionally quiet operation, it is the perfect visual and technical complement to your printer. Device castors ensure mobility and flexibility - in addition, there is plenty of storage space for accessories and consumables.

Three versions are available:

  • The ″basic version″ offers a stable table stand solution

  • The ″standard version″ and ″high performance version″ both include an additional filter

  • System to reduce odors during the printing process

Benefits

Stable table stand solution with castors and a lot of storage space

Filtration system for odors occuring during printing processes

″Silent Technology″ offers extremely quite operation

The basic devices

RDG MO-180 RDG MO 240
ULT order number 2-00299 2-00303
Dimensions
(WxDxH)
1,440 x 903 x 588 mm
63 x 36 x 23 inch
1,592 x 1,210 x 588 mm
63 x 48 x 23 inch
Weight 102 kg / 225 lbs * 115 kg / 254 lbs

* weight specifications may change due to prototype status

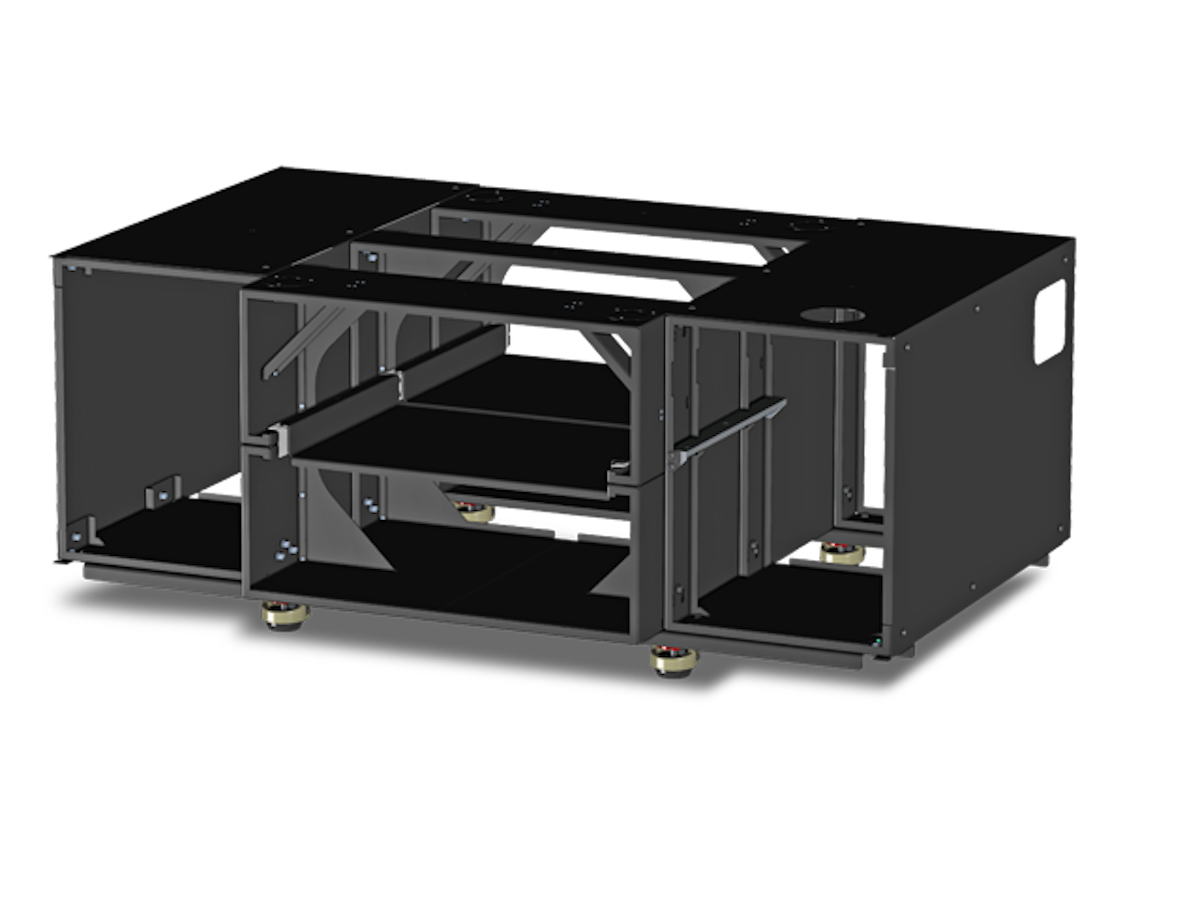

Rendering of the Roland printer

RDG MO-180 basic model

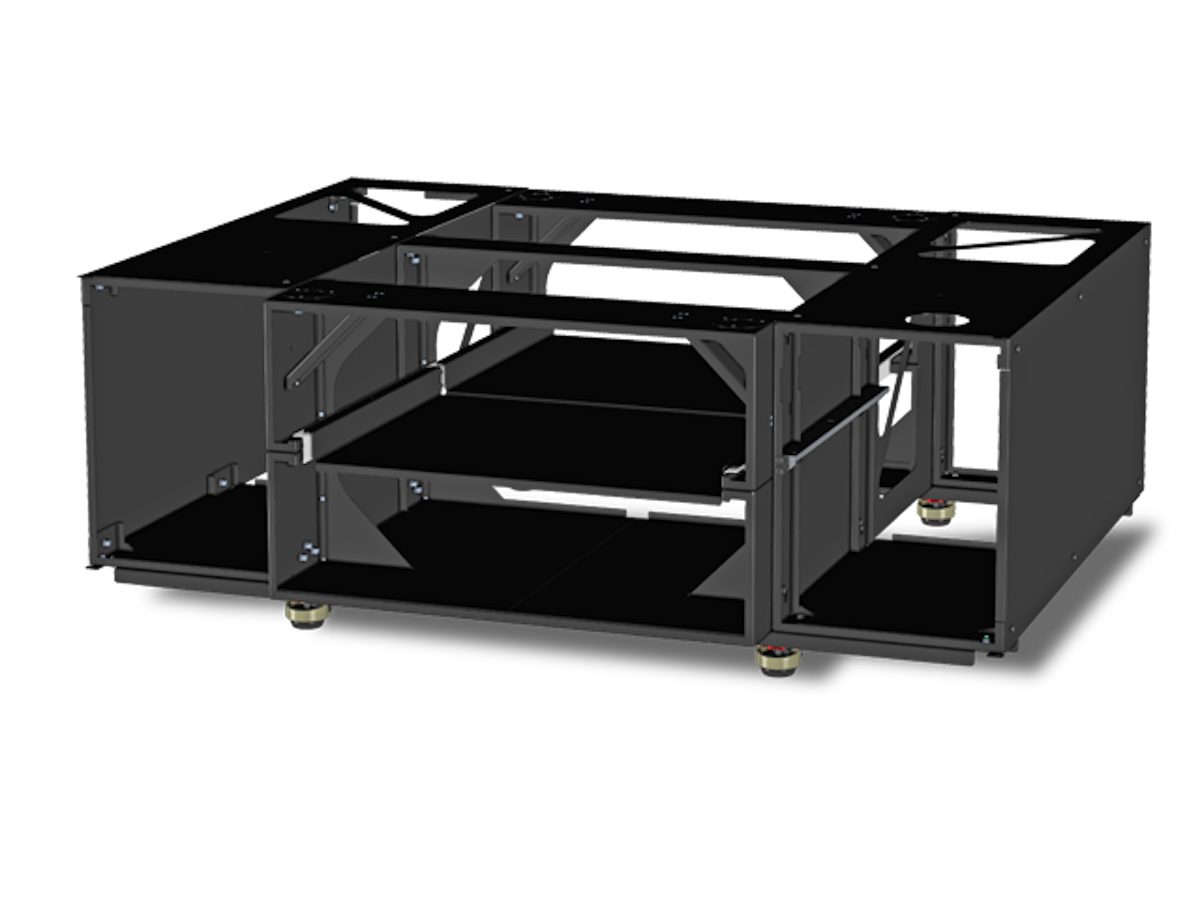

Rendering of a black-grey Roland printer housing

RDG MO-240 basic model

Technical specifications of the air filtration system

parameters RDG MO-180
Standard
RDG MO-180
High Performance
RDG MO-240
Standard
RDG MO-240
High Performance
ULT order number 2-00298 2-00300 2-00302 2-00304
Stable table stand

Device castors

Openings at the left
and right sides

Air filtration system

Nominal voltage 1~110 … 240 VAC 1~110 … 240 VAC 1~110 … 240 VAC 1~110 … 240 VAC
Nominal frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Filter

Prefilter:
Filter plate made of
polyurethane foam


Main filter:
textile filter bag with
activated carbon for gas and odors.
6.0 kg perfectly fitted for the process.

Prefilter:
Filter plate made of
polyurethane foam


Main filter:
textile filter bag with
activated carbon and chemiesorption
50/50 vol% for gas and odors. 6.0 kg
perfectly fitted for the process.

Prefilter:
Filter plate made of
polyurethane foam


Main filter:
textile filter bag with
activated carbon for gas and odors.
6.0 kg perfectly fitted for the process.

Prefilter:
Filter plate made of
polyurethane foam


Main filter:
textile filter bag with
activated carbon and chemiesorption
50/50 vol% for gas and odors. 6.0 kg
perfectly fitted for the process.

Dimensions (WxDxH) 1,440 x 903 x 588 mm
63 x 36 x 23 inch
1,440 x 903 x 588 mm
63 x 36 x 23 inch
1,592 x 1,210 x 588 mm
63 x 48 x 23 inch
1,592 x 1,210 x 588 mm
63 x 48 x 23 inch
Weight 126 kg / 278 lbs* 128 kg / 282 lbs* 138 kg / 304 lbs 141 kg / 311 lbs
Approvals CE, UL CE, UL
* weight specifications may change due to prototype status

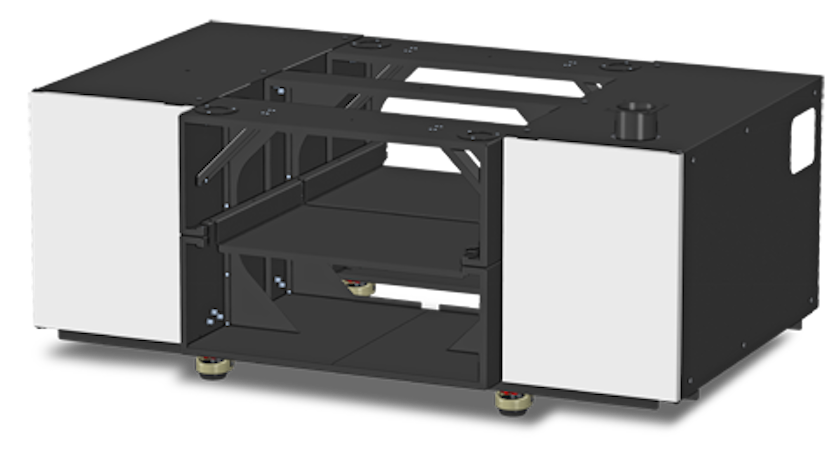

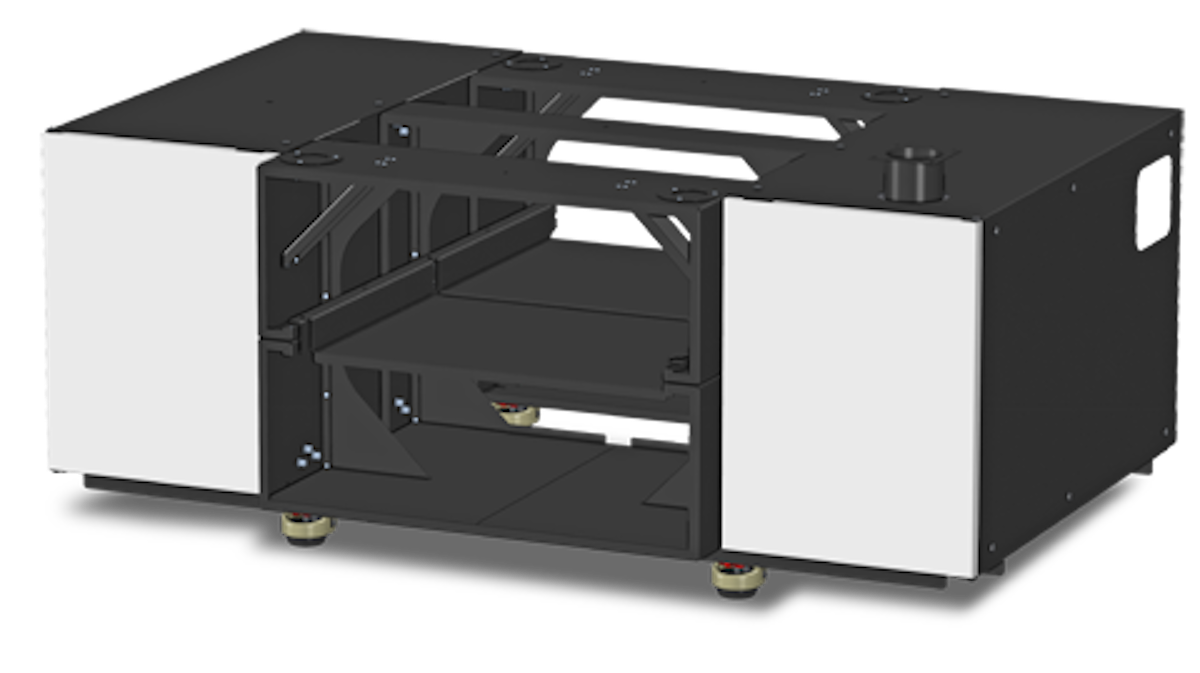

Lateral view of the black box with opening slots

RDG MO-180 - High Performance

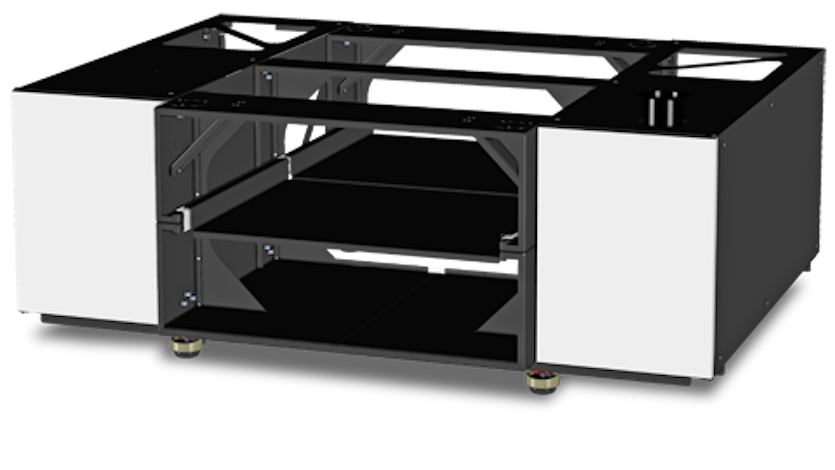

Rendering of a black box with white doors and opening slots

RDG MO-240 - High Performance

Accessories and kits

  Retro fit kit Add-on
components
Replacement filter
Retro fit kit -
basic to standard
Retro fit kit - basic
to high performance
Retro fit kit -
doors
Set anti-slip unit Adsorption filter bag -
standard
Adsorption filter bag -
high performance
ULT order number 3-01429 3-01436 3-01363 3-01464 4-00968 4-00969
Content Door set, filter bag, filter
unit, guide rail, intake
nozzle
Door set, filter bag, filter unit,
guide rail, intake nozzle
2x doors, door
seal, magnets
Set of 4x anti-slip units Filter, prefilter Filter, prefilter
Dimensions
(WxDxH)
700 x 400 x 330 mm 700 x 400 x 330 mm 50 x 375 x 500 mm 160 x 120 x 100 mm 330 x 330 x 140 mm 330 x 330 x 140
Weight net 25 kg 27 kg 5 kg 2 kg 6 kg 7 kg
Use Upgrade basic table to
standard filter table
Upgrade basic table to high
performance filter table
Upgrade basic
table with doors
Prevents the printer from
sliding on the table in the
case of vibrations
Replacement filter Replacement filter
Images
Black box with openings in the middle and white doors at the frontal sides
RDG MO-240 - High Performance
Rendering of the system with white doors on the sides
Roland RDG MO-240 - High Performance
Rendering of a black-grey Roland printer housing
RDG MO-240 basic model
Rendering of the Roland printer
RDG MO-180 basic model
Images of four versions of the anti-sip set
Roland anti-slip set
Single parts of the kits incl. housing and doors
Retro fit kit
Black rectangular textile bag with small silver buttons
Adsorption filter bag - standard
Black cuboid textile bag with silver buttons
Adsorption filter bag - high performance
Black box with openings in the middle and white doors at the frontal sides
RDG MO-240 - High Performance
Rendering of the system with white doors on the sides
Roland RDG MO-240 - High Performance
Rendering of a black-grey Roland printer housing
RDG MO-240 basic model
Rendering of the Roland printer
RDG MO-180 basic model
